| 產品圖片 | 型號 | 功能描述 | 輸入通道數量 | 輸出通道數量 | 最大輸出頻率 | 周期性抖動 | 輸出模式 | 輸出模式 | 輸出模式 | 輸出模式 | 輸出模式 | 內核電壓 | 輸出級電壓 | 封裝 | 競品型號 |
| Product picture | PART NO. | Descriptions | Clock Inputs | Clock Outputs | MAX Output Frequency(MHz) | Period Jitter(ps) | LVPECL | LVDS | HSTL | HCSL | LVCMOS | Core Voltage(V) | Output Voltage(V) | Packages | Cross Reference |

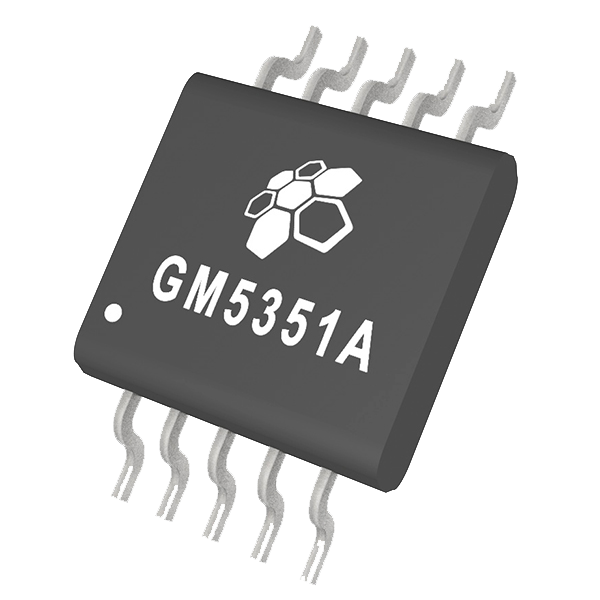

 | GM5351A | I2C Programmable Any-Frequency CMOS Clock Generator | 1 | 3 | 250 | 70 | X | X | X | √ (雙通道模擬) | √ | 2.5, 3.3 | 1.8, 2.5, 3.3 | MSOP10 | SI5351A |

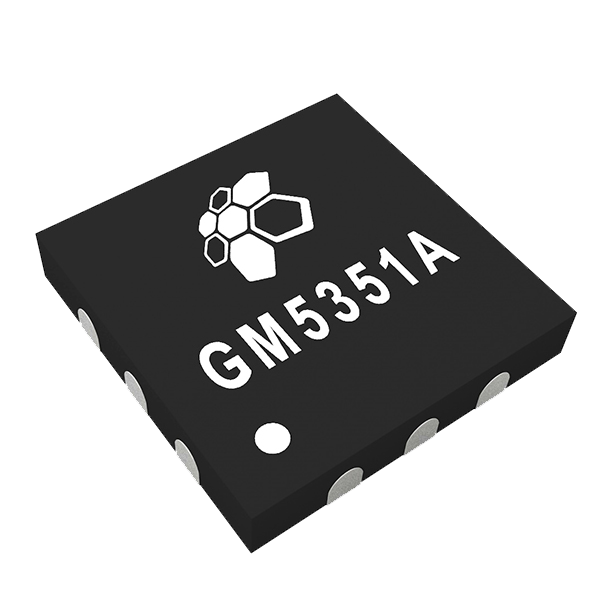

 | GM5351A | I2C Programmable Any-Frequency CMOS Clock Generator | 1 | 3 | 250 | 70 | X | X | X | √ (雙通道模擬) | √ | 2.5, 3.3 | 1.8, 2.5, 3.3 | QFN12 | |
 | GM5528 | JESD204B Clock Generator & Jitter Cleaner With 14 Outputs | 3 | 14 | 1250 | 160 | √ | √ | √ | √ (電阻匹配) | √ | 3.3 | 3.3 | QFN72 | AD9528 |

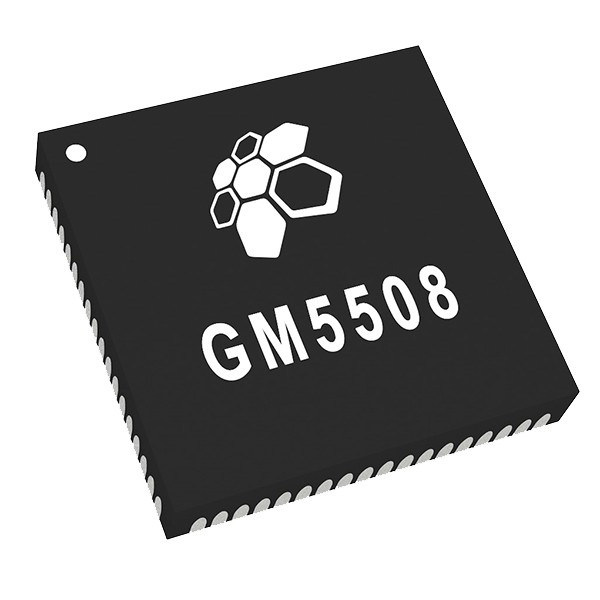

 | GM5508 | JESD204B Clock Generator & Jitter Cleaner With 8 Outputs | 3 | 8 | 1250 | 160 | √ | √ | √ | √ (電阻匹配) | √ | 3.3 | 3.3 | QFN72 | AD9528 |
| 產品圖片 | 型號 | 功能描述 | 輸入通道數量 | 輸出通道數量 | 最大輸出頻率 | 積分抖動 | 輸出模式 | 輸出模式 | 輸出模式 | 輸出模式 | 輸出模式 | 內核電壓 | 輸出級電壓 | 封裝 | 競品型號 |
| Product picture | PART NO. | Descriptions | Clock Inputs | Clock Outputs | MAX Output Frequency(MHz) | RMS Jitter(fs) | LVPECL | LVDS | HSTL | HCSL | LVCMOS | Core Voltage(V) | Output Voltage(V) | Packages | Cross Reference |
| GM5528 | JESD204B Clock Generator & Jitter Cleaner With 14 Outputs | 3 | 14 | 1250 | 160 | √ | √ | √ | √ (電阻匹配) | √ | 3.3 | 3.3 | QFN72 | AD9528 |
| GM5508 | JESD204B Clock Generator & Jitter Cleaner With 8 Outputs | 3 | 8 | 1250 | 160 | √ | √ | √ | √ (電阻匹配) | √ | 3.3 | 3.3 | QFN72 | AD9528 |
| 產品圖片 | 型號 | 功能描述 | 輸入通道數量 | 輸出通道數量 | 最大輸出頻率 | 附加抖動 | 輸出模式 | 輸出模式 | 輸出模式 | 輸出模式 | 輸出模式 | 內核電壓 | 輸出級電壓 | 封裝 | 競品型號 |
| Product picture | PART NO. | Descriptions | Clock Inputs | Clock Outputs | MAX Output Frequency(MHz) | Additive RMS Jitter(fs) | LVPECL | LVDS | HSTL | HCSL | LVCMOS | Core Voltage(V) | Output Voltage(V) | Packages | Cross Reference |
 | GM50301 | 2.5GHz 10 Outputs Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator | 3 | 10 | 2500 | 30 | √ | √ | X | √ | √ | 3.3 | 2.5, 3.3 | QFN48 | LMK00301 8T39S11A （8T39210) PI6C49S1510B |

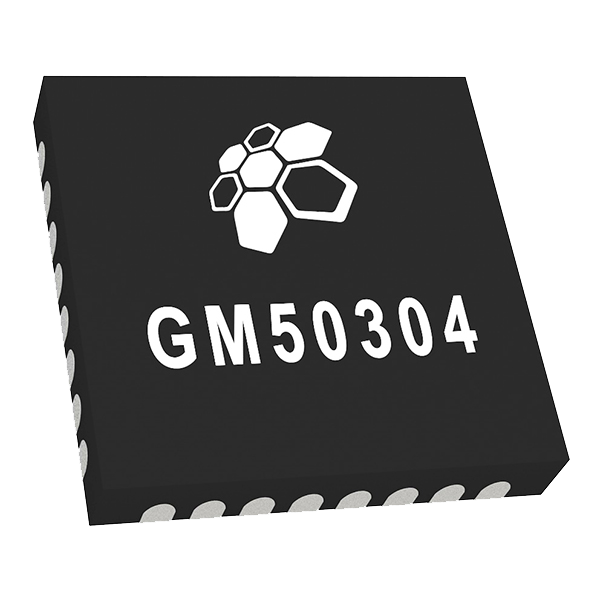

 | GM50304 | 2.5GHz 4 Outputs Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator | 3 | 4 | 2500 | 30 | √ | √ | X | √ | √ | 3.3 | 2.5, 3.3 | QFN32 | LMK00304 8T39S04A (8T39204) PI6C49S1504T AD9528 |
 | GM50101 | 10 Outputs Ultra-Low Additive Jitter LVCMOS Clock Buffer/Level Translator | 3 | 10 | 200 | 30 | X | X | X | X | √ | 2.5, 3.3 | 1.5, 1.8, 2.5, 3.3 | QFN32 | LMK00101 8L30210 PI6C49X0210A (PI6C49X0208) |

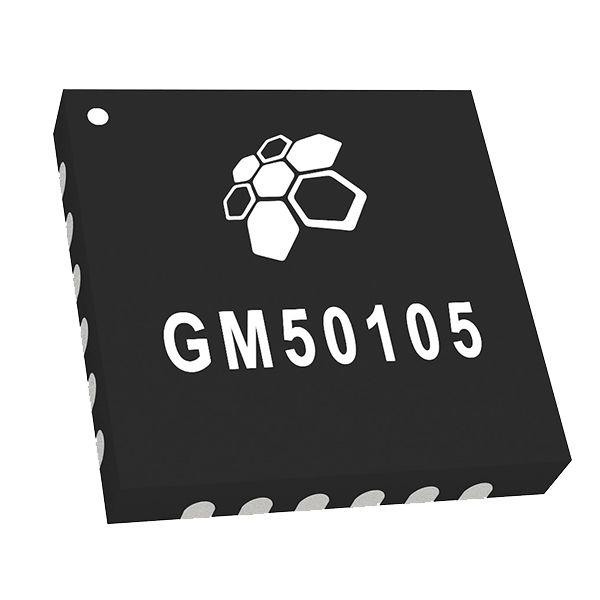

 | GM50105 | 5 Outputs Ultra-Low Additive Jitter LVCMOS Clock Buffer/Level Translator | 3 | 5 | 200 | 30 | X | X | X | X | √ | 2.5, 3.3 | 1.5, 1.8, 2.5, 3.3 | QFN24 | LMK00105 (8L30205) |
